Hydraulic central clutch operator, location/task/function - GF25.20-P-5101A
MODEL 203, 230 with TRANSMISSION 716.6
with CODE (424) Sequentronic automated manual transmission (SEQ)
up to Model Year 8
MODEL 208, 209, 211 with TRANSMISSION 716.6 with CODE (424) Sequentronic automated manual transmission (SEQ)

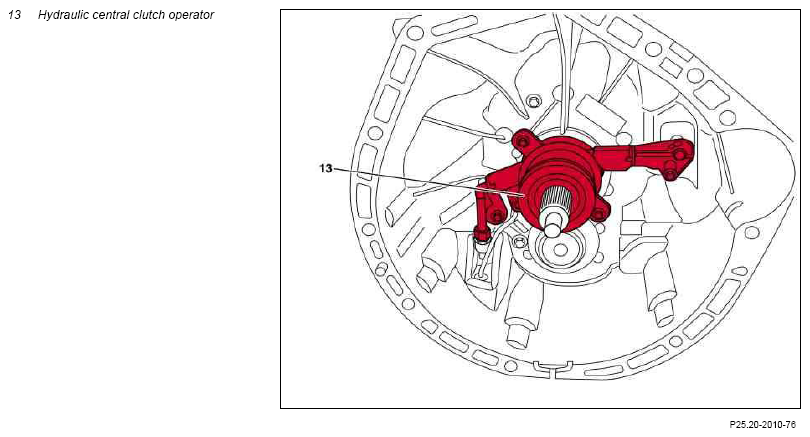

| Hydraulic central clutch operator, location | The hydraulic central clutch operator (13) is located on the input shaft of the manual transmission, rigidly bolted onto the transmission bell housing. | |
| Hydraulic central clutch operator, task | Actuates the clutch pressure plate. | |
| Hydraulic clutch release mechanism: operation | GF25.20-P-5101-03A |
