Automatic transmission (AT), location of hydraulic components - GF27.10-P-0001-09N

Transmission 722.9 in model 171.4, 203, 209, 211, 215, 219, 220, 230, 463.303/340/341

Valve housing

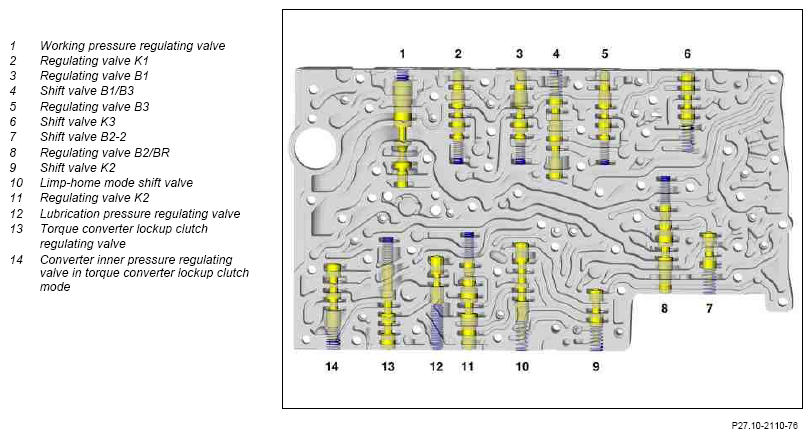

Fig 1: Locating Automatic Transmission Hydraulic Components - Valve Housing
G07283088Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Valve body

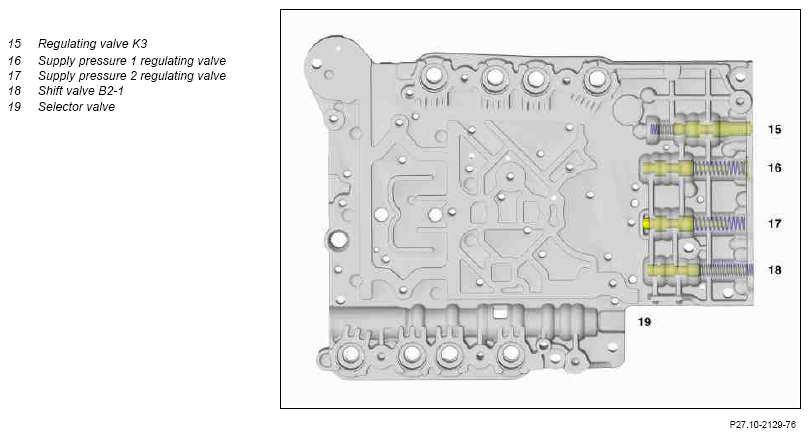

Fig 2: Locating Automatic Transmission Hydraulic Components - Valve Body
G07283089Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
