Automatic transmission (AT), location of electric/electronic components - GF27.10-P-0001-08N

Transmission 722.9 in model 171.4, 203, 209, 211, 215, 219, 220, 230, 463.303/340/341

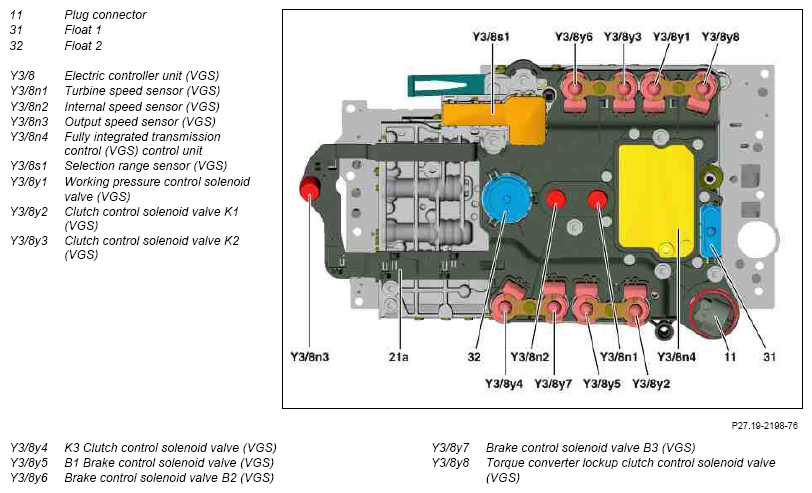

Fig 1: Locating Automatic Transmission Electric/Electronic Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
