Automatic transmission (AT), location of components, floor shift - GF27.10-P-0001-04NTL

Transmission 722.9 in model 211, 219 with code (428a) steering wheel shift buttons

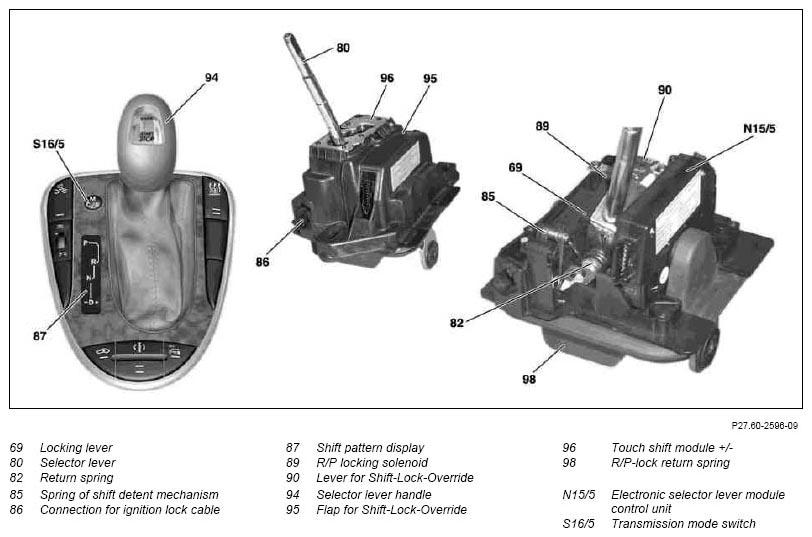

Fig 1: Locating Automatic Transmission Floor Shift Components
G07283703Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
