Automatic transmission (AT), location of components, floor shift - GF27.10-P-0001-04NT

Transmission 722.9 in model 211, 219, except code (428) Steering wheel shift buttons

Model 463.303/340/341

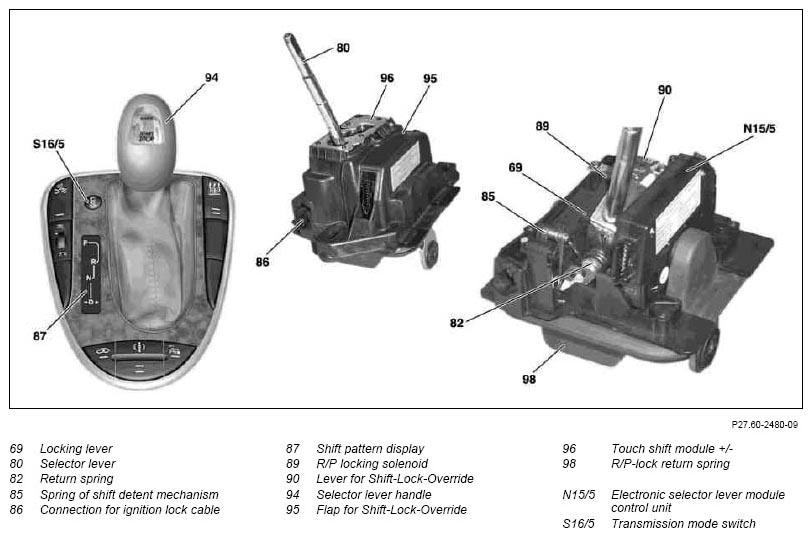

Fig 1: Locating Automatic Transmission Floor Shift Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
