Automatic transmission (AT), driver information - GF27.10-P-0001-02NTL
Transmission 722.9 in model 211, 219 with code (428a) steering wheel shift buttons

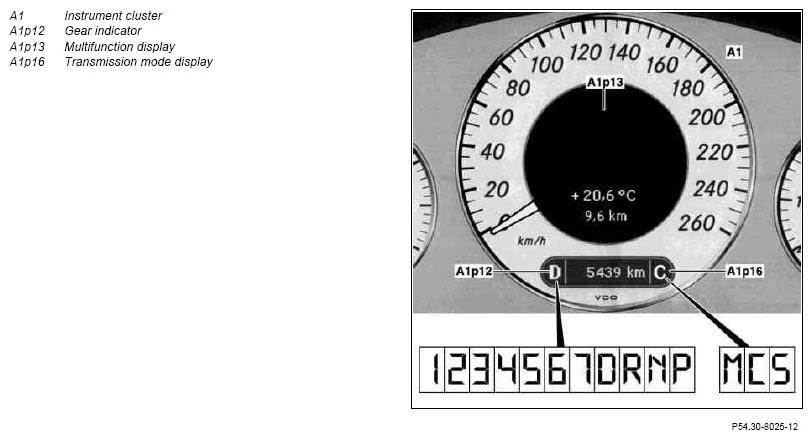

Gear indicator (A1p12) in instrument cluster (A1) in Sports program "S" and in Comfort program "C"
It indicates to the driver the currently selected shift range "1", "2", "3", "4", "5", "6" or the selector lever position "D", "R", "N" (neutral) or "P" (park).
Gear indicator (A1p12) in instrument cluster (A1) in manual program "M":
It shows the driver the engaged gear "1", "2", "3", "4", "5", "6", "7".
Transmission mode display (A1p16) in instrument cluster (A1)
It shows the driver the program "S" (sport program), "C" (comfort program) or "M" (manual program) selected at the transmission mode switch (S16/5).
