Install repair bolt - AR40.20-P-0322-01T

1. Jack up vehicle at the front (the suspension must be fully rebounded).
2. Remove series bolt (19a) with nut (19b) on spring control arm (17).

   For camber correction.

   Shows on model 211

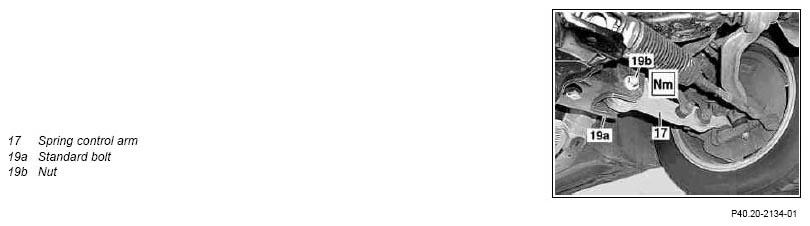

   Fig 1: Identifying Spring Control Arm, Standard Bolt And Nut (Shown On Model 211)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Remove series bolt (19a) with nut (19b) on torque strut (18).

   For caster correction.

   Shows on model 211

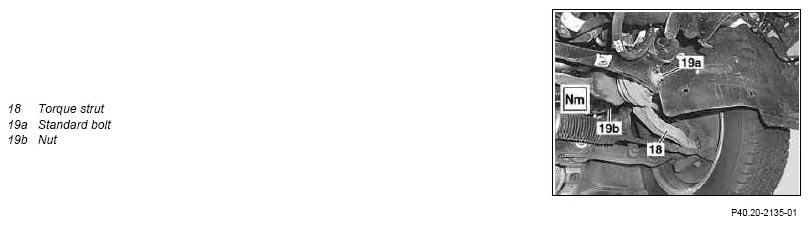

   Fig 2: Identifying Torque Strut, Standard Bolt And Nut (Shown On Model 211)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. For the adjustment of camber and caster replace the respective standard bolt (19a) on the torque strut (18) or spring control arm (17) by a repair bolt (19c).
   Fig 3: Identifying Standard And Repair Bolts

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
   1. Standard threaded connection
   2. Repair threaded connection

The standard bolt (19a) is centered by humps (arrows) in the rubber mount of the torque strut (18) or spring control arm (17). Due to grooves in the repair bolt (19c) this can be installed in the right or left position in the rubber mount, an adjustment range of the torque strut (18) or of the spring control arm (17) of 4 mm inwards or outwards occurring.

The repair bolt (19c) must not  be twisted after fixing in position in the rubber mount of the torque strut (18) or of the spring link (17). Do not yet tighten nut (19b) to enable the rubber mount on the torque strut (18) or of the spring control arm (17) to rotate when the vehicle is rocked to settle the suspension.

Fig 4: Locating Humps Centering Standard Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
