Staking tool for securing joint hub on rear halfshaft - WF58.50-P-3530-07P

Model 170, 171, 203, 204, 207, 208, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230

  1. Grind the blade of a commercially available cape chisel to dimension "d".

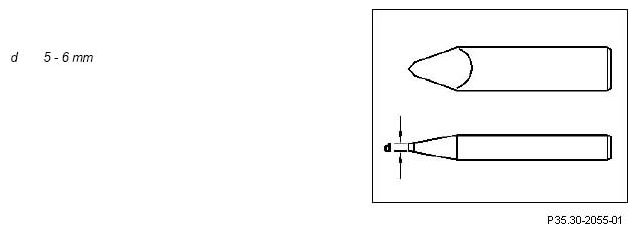

    Fig 1: Identifying Cape Chisel Blade Grinding Dimension (D)
    G07282466Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
