Rear axle damping valve unit, location/task/design/function - GF32.25-P-2000A
MODEL 211.2 except CODE (489a) Airmatic (semi-active air suspension)
| Rear axle damping valve unit, location | The left (Y53) and right (Y54) rear axle damping valve unit is located at the rear axle. | |
| Rear axle damping valve unit, task | The left (Y53) and right (Y54) rear axle damping valve unit carries out all the functions required for adjusting the level of the vehicle. | |

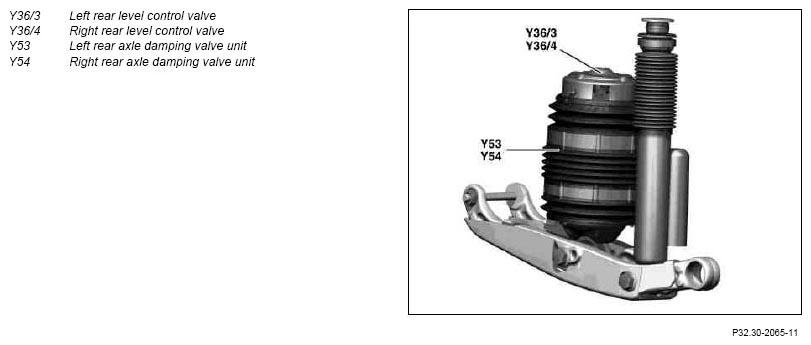

| Damping valve unit, design | The left (Y53) and right rear axle damping valve unit (Y54) consists of air spring bellows, a rubber boot and the left rear (Y36/3) or right rear (Y36/4) level control valve. | |
| Rear axle damping valve unit, function | GF32.25-P-2000-02A |
