Level sensor, location - GF32.31-P-4400-01T

Model 211.2

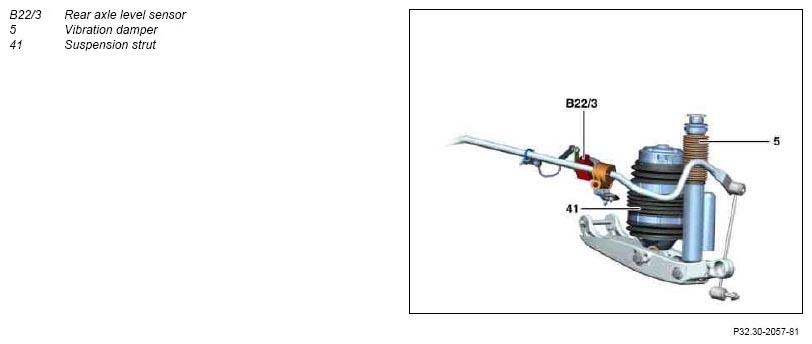

Fig 1: Locating Rear Axle Level Sensor, Vibration Damper And Suspension Strut

G07274399

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
