Remove/install spring control arm, replace rubber bushing - AR35.20-P-0114TA

MODEL 211.2 except CODE (489) Airmatic (semi-active air suspension)

MODEL 211.6

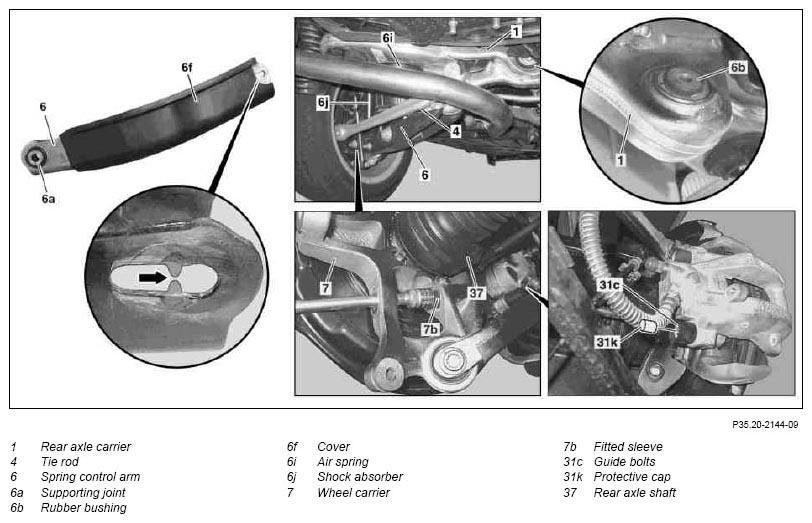

Fig 1: Identifying Spring Control Arm Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
		Installation: Only tighten bolts and nuts of the chassis components when in ready-to-drive condition.
1	Empty air spring (6i) completely using STAR DIAGNOSIS		AR32.22-P-1500-04TA
	Notes on air suspension		AH32.22-P-1000-01T
		Installation: The filling procedure for the air springs must be observed, otherwise the air springs will be irreparably damaged.	AR32.22-P-1500-03TA
			*BA32.25-P-1008-04B
			*BA32.25-P-1009-04B
			*211589000900
		Electronic inclinometer gotis://F_40.2_02.0
2	Secure vehicle on the lifting platform		AR00.60-P-0100T
3	Remove rear wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
4	Remove cover (6f)
5	Detach air spring (6i) from spring control arm (6)	Do not twist the air spring and do not move into the stretched position as this leads to creases forming in the air spring bellows and consequently to irreparable damage to the component. Secure the air spring to prevent it from falling down.
		Installation: Do not tighten threaded connection.
6	Detach shock absorber (6j) from spring control arm (6).		*BA32.25-P-1002-03G
7	Remove shock absorber (6j) from spring control arm (6)	Push together shock absorber and position at side of spring control arm.
8	Raise wheel carrier (7) with transmission jack and transmission platform until the rear axle shaft (37) is approximately horizontal	Installation: Tighten all bolted connections which are screwed together loosely
			*BA35.20-P-1001-04C
			*BA35.20-P-1003-01A
9	Detach tie rod (4) from wheel carrier (7) and swing upwards.	Installation: Mount bolted connection loosely.
10	Pull off protective cap (31k) and unscrew lower guide bolt (31c) for brake caliper		*BA42.10-P-1003-12H
11	Detach spring control arm (6) from rear axle carrier (1).	Installation: Mount bolted connection loosely.
12	Detach spring control arm (6) from wheel carrier (7) and lever out spring control arm (6).	Installation: Drive fitted bush (7b) flush into wheel carrier (7) using a suitable tool.
			*BA35.20-P-1004-01A
	Checking
13	Check supporting joint (6a) in spring control arm (6) for signs of damage	Replace spring control arm if necessary. In the case of aluminum spring control arm for air suspension the supporting ball joint must not be replaced. The spring control arm is damaged by the supporting ball joint being pulled out and in. An exact alignment of the spring link halves is not subsequently possible.
14	Check rubber mount (6b) for spring control arm (6) in rear axle carrier (1) for signs of damage	Replace rubber mount if necessary.
	Replacing rubber mount:
15	Detach tie rod (4) from rear axle carrier (1)		AR35.20-P-0109R
16.1	Remove rear muffler	Model 211.206/606/208/608	AR49.10-P-4951T
		Model 211.220/222/284/289/620	AR49.10-P-4951TI
16.2	Remove exhaust system from flange connection back	Model 211.216/616	AR49.10-P-7280T
16.3	Detach complete exhaust system	Model 211.261/265/280/282	AR49.10-P-7000TB
		Model 211.241/242	AR49.10-P-7000TK
		Model 211.254/256/287/292	AR49.10-P-7000TS
16.4	Remove exhaust system from pipe connection	Model 211.223/226	AR49.10-P-7281T
17	Remove rubber mount (6b)		AR35.20-P-0114-01I
			*220589014300
			*202589044310
18	Install in the reverse order
19	Perform wheel alignment check		AR40.20-P-0200T

TIE ROD

Number	Designation			Model 211
BA35.20-P-1001-04C	Self-locking nut, tie rod at wheel carrier	Stage 1	Nm	40
		Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation					Model 211
BA35.20-P-1003-01A	Self-locking nut, spring control arm to rear axle carrier	Aluminum	M12	Stage 1	Nm	50
				Stage 2	∠°	90
		Steel	M12	Stage 1	Nm	50
				Stage 2	∠°	90
BA35.20-P-1004-01A	Self-locking nut, spring control arm to wheel carrier.	Aluminum	M14	Stage 1	Nm	150
				Stage 2	∠°	-
		Steel	M14	Stage 1	Nm	80
				Stage 2	∠°	90

SUSPENSION STRUTS

Number	Designation		Model 211.2/6
BA32.25-P-1008-04B	Nut, rear air spring at spring control arm	Nm	150
BA32.25-P-1009-04B	Air suspension pressure line at rear axle distributor	Nm	2

REAR AXLE BRAKE CALIPER

Number	Designation		Model 211 except model 211.076/077/276/277
BA42.10-P-1003-12H	Guide pin on caliper support	Nm	28

REAR AXLE SHOCK ABSORBER

Number	Designation				Model 211.2/6
BA32.25-P-1002-03G	Self-locking nut to spring control arm shock absorber	M10	Stage 1	Nm	50
			Stage 2	∠°	90

Fig 2: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Press Out/In Tool (220 589 01 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Press (202 589 04 43 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
