Remove/install spring control arm, replace rubber bushing - AR35.20-P-0114T

MODEL 211.0

MODEL 211.2 with CODE (489) Airmatic (semi-active air suspension)

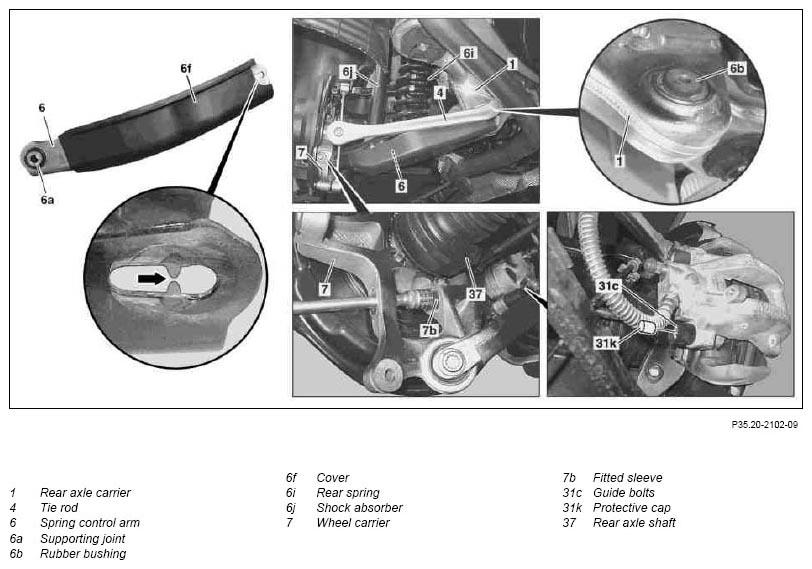

Fig 1: Identifying Spring Control Arm Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with steel suspension

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
		Only tighten bolts and nuts of the chassis components when in ready-to-drive condition.
1	Completely discharge all air from air spring with STAR DIAGNOSIS	Vehicles with AIRMATIC (semi-active air suspension), code 489	AR32.22-P-1500-04T
	Notes on AIRmatic		AH32.22-P-1000-02T
		The filling procedure for the air springs must be observed, otherwise the air springs will be irreparably damaged.	AR32.22-P-1500-03T
			*BA32.25-P-1008-04B
			*BA32.25-P-1009-04B
		Electronic inclinometer gotis://F_40.2_02.0	*211589000900
2	Secure vehicle on the lifting platform		AR00.60-P-0100T
3	Remove rear wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
4	Remove cover (6f)
5.1	Detach air spring from spring control arm (6)	Vehicles with AIRMATIC (semi-active air suspension), code 489 Do not twist the air spring nor move it into the stretched position as this leads to creases forming in the air spring bellows and consequently to irreparable damage to the air spring. Secure the air spring to prevent it from falling down. Do not tighten threaded connection.
5.2	Remove rear spring (6i).	Vehicles without AIRmatic
		Model 211 except model 211.08/09	AR32.20-P-0230P
		Model 211.08/09	AR32.20-P-0230T
6	Detach shock absorber (6j) from spring control arm (6).	Vehicles with AIRMATIC (semi-active air suspension), code 489
			*BA32.25-P-1002-03G
7	Remove shock absorber (6j) from spring control arm (6)	Vehicles with AIRMATIC (semi-active air suspension), code 489 Push together shock absorber and position at side of spring control arm.
8	Raise wheel carrier (7) with transmission jack and transmission platform until the rear axle shaft (37) is approximately horizontal	Installation:  Tighten all bolted connections which are screwed together loosely
			*BA35.20-P-1001-04C
			*BA35.20-P-1003-01A
9	Detach tie rod (4) from wheel carrier (7) and swing upwards.	Installation:  Mount bolted connection loosely.
10	Pull off protective cap (31k) and unscrew lower guide bolt (31c) for brake caliper	Except 211.076/077/276/277
			*BA42.10-P-1003-12H
11	Detach spring control arm (6) from rear axle carrier (1).	Installation:  Mount bolted connection loosely.
12	Detach spring control arm (6) from wheel carrier (7) and lever out spring control arm (6).	Drive the fitted bush (7b) flush into the wheel carrier using a suitable tool.
			*BA35.20-P-1004-01A
	Checking
13	Check spring control arms (6) for signs of damage	Vehicles without AIRmatic On vehicles with steel suspension bars are located on the spring control arm (arrow), which shear off at side impacts and thus protect the rear axle carrier (1). If these webs have been sheared off, the spring control arm must be replaced.
14	Check supporting joint (6a) in spring control arm (6) for signs of damage	Vehicles without AIRmatic: Replace supporting ball joint (6a) if necessary: ↓
		Remove/install supporting joint on spring control arm Vehicles with AIRmatic: Replace spring control arm (6) if necessary. In the case of aluminum spring control arm for air suspension the supporting ball joint must not be replaced. The spring control arm is damaged by the supporting ball joint being pulled out and in. An exact alignment of the spring link halves is not subsequently possible.	AR35.20-P-0118R
15	Check rubber mount (6b) for spring control arm (6) in rear axle carrier (1) for signs of damage	Replace rubber mount if necessary.
	Replacing rubber mount:
16	Detach tie rod (4) from rear axle carrier (1)		AR35.20-P-0109R
17.1	Remove rear muffler	Model 211.004/006/206/007/008/208	AR49.10-P-4951T
		Model 211.020/220/022/222/084/089/284/289	AR49.10-P-4951TI
		Model 211.029	AR49.10-P-4951TJ
17.2	Remove exhaust system from flange connection back	Model 211.016/216	AR49.10-P-7280T
		Model 211.028	AR49.10-P-7280TC
17.3	Detach complete exhaust system	Model 211.061/065/070/076/077/261/265/270/276/277/080/082/083/280/282/283	AR49.10-P-7000TB
		Model 211.041/241/042/242	AR49.10-P-7000TK
		Model 211.054/056/072/087/090/092/254/256/272/287/290/292	AR49.10-P-7000TS
17.4	Remove exhaust system from pipe connection	Model 211.023/026/223/226	AR49.10-P-7281T
18	Remove rubber mount (6b)		AR35.20-P-0114-01I
			*220589014300
			*202589044310
19	Install in the reverse order
20	Perform wheel alignment check		AR40.20-P-0200T
