Remove/install rear rubber mount of rear axle center assembly suspension - AR35.10-P-0050-02T

Fig 1: Identifying Extraction And Insertion Tool (210 589 02 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Assembly And Removal Tool Supplementary Kit (230 589 00 34 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removing

1. Measure insertion depth (a) on inner core of rubber mount (62) on rear axle carrier (8) from the front using depth gauge, record the result.

   Depth gauge gotis://G_58.3_09.0

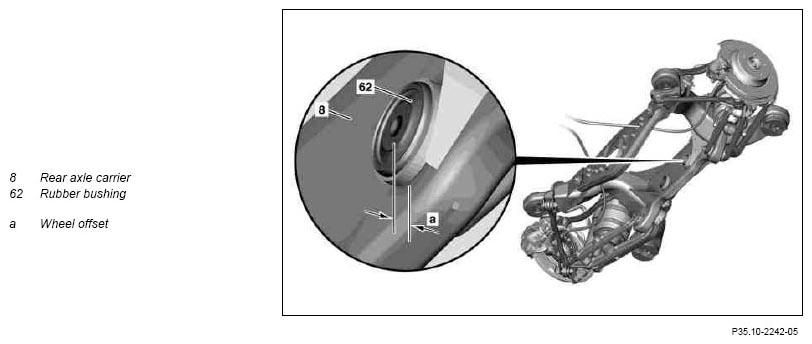

   Fig 3: Identifying Wheel Offset

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Press rubber mount (62) with sleeve (15) and thrust piece (16) to the front to remove them from the rear axle carrier (8).

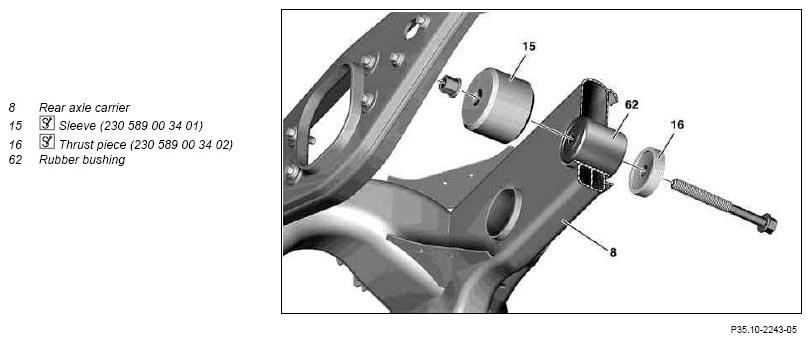

   Fig 4: Identifying Rear Axle Carrier, Sleeve, Thrust Piece And Rubber Bushing

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Install

3. Apply lubricant to the entire periphery of the rubber bushing (62) and clean the mounting socket in the rear subframe (8).
4. Position rubber mount (62) from the front on the rear axle carrier (8) and press thrust piece (16) and sleeve (6) into the rear axle carrier (8) until the press-in depth measured previously has been reached.

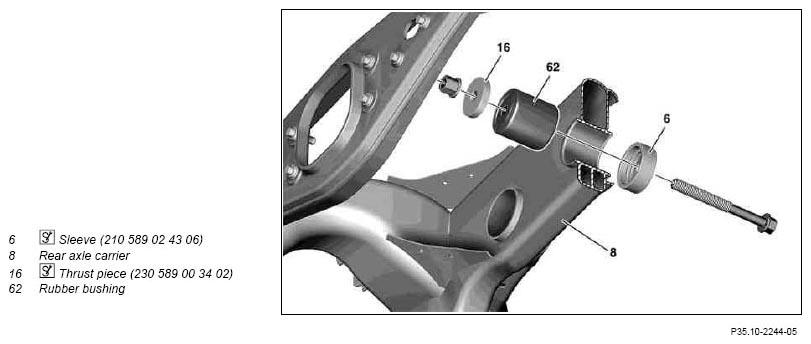

   Fig 5: Positioning Rubber Mount, Thrust Piece, Sleeve And Rear Axle Carrier

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
