Pull rear axle shaft flange out of angular contact ball bearing - AR35.20-P-0130-06TX

MODIFICATION NOTES

27.9.05 Special tool 201 589 10 33 00 replaced by special tool 211 589 01 33 00
Fig 1: Identifying Press (202 589 04 43 10)
G07285426Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Puller (211 589 01 33 00)
G07285427Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. SPECIAL TOOL Position the pressure plate (01) behind the rear axle shaft flange (1).
  2. SPECIAL TOOL Screw retaining bolts (03) into the rear axle shaft flange (1).
  3. SPECIAL TOOL Push the guide plate (05) forwards until the guide pins (02) are fixed in position in the SPECIAL TOOL pressure plate (01).
  4. SPECIAL TOOL Insert press (04) and pull rear axle shaft flange (1) out of angular contact ball bearing (2) by turning the spindle (arrow).

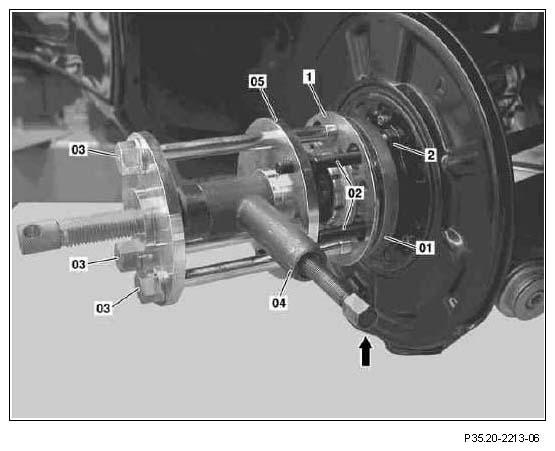

    Fig 3: Turning Spindle Of Ball Bearing
    G07069048Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
