Pull rear axle shaft flange into angular contact ball bearing - AR35.20-P-0130-07TX

Fig 1: Identifying Extraction And Installation Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Insertion Tool (211 589 00 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

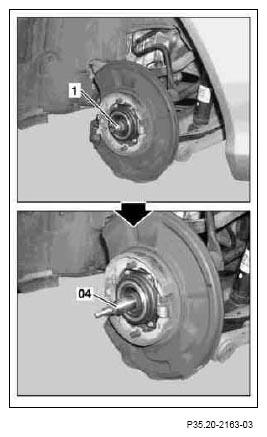

Screw insertion tool (04) onto the rear axle shaft (1).

Fig 3: View Of Rear Axle Shaft And Insertion Tool
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Push rear axle shaft flange (2) onto rear axle shaft (1).

Fig 4: Pushing Rear Axle Shaft Flange Onto Rear Axle Shaft
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

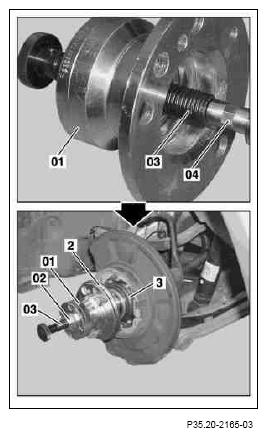

Position the extraction and insertion tool 01) on the rear axle shaft flange (2), in the process screwing the spindle (03) onto the insertion tool (04).
Mount the extraction and insertion tool (01) on the rear axle shaft flange (2) using three wheel bolts.
Draw in the rear axle shaft flange (2) up to the stop in the angular contact ball bearing (3); to do this, turn the nut (02) and counterhold the spindle (03).

Fig 5: Drawing In Rear Axle Shaft Flange
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
