Removing and installing air suspension control unit - AR32.22-P-6000TA
MODEL 211.2 except CODE (489) AIRmatic (semi-active air suspension)
MODEL 211.6
| Remove/Install | |||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect ground cable from battery | Model 211.2 | AR54.10-P-0003TA |
| Model 211.6 | AR54.10-P-0003T | ||
| Notes on battery | AH54.10-P-0001-01A | ||

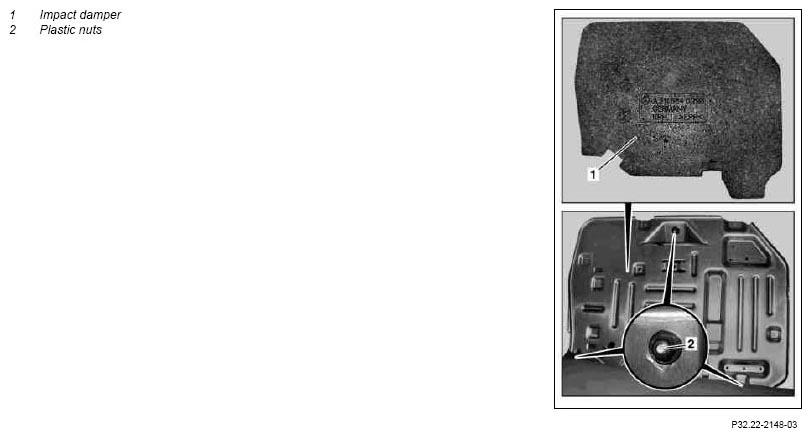

| 2 | Fold back the foot mat on the passenger-side and remove the impact absorber (1) | ||
| 3 | Unscrew plastic nuts (2) and fold control unit carrier plate towards the rear | ||

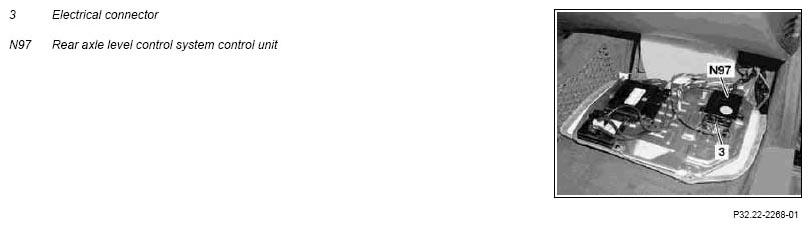

| 4 | Remove rear axle level control system control unit (N97) from carrier plate and disconnect electrical connector (3) | ||
| 5 | Install in the reverse order | ||
| 6.1 | Use STAR DIAGNOSIS to calibrate rear axle level control system control unit (N97) | When installing new control unit | |
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
