Remove/install front shock absorber - AR32.25-P-0105P
MODEL 203 (except 203.08/09/28/29)
MODEL 209 except CODE (P98) Black Series
MODEL 211 (except 211.08/09/28/29) except CODE (489) Airmatic (semi-active air suspension)
MODEL 230 except CODE (P99) "AMG Black Series" special model

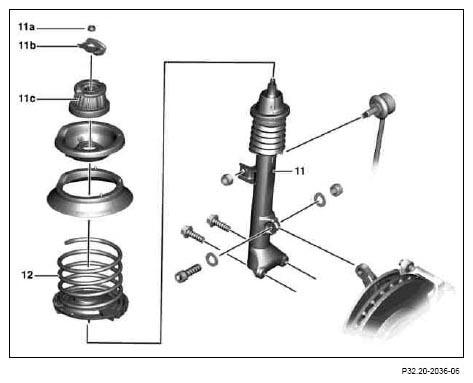

Shown on suspension strut, model 203
| Remove/install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove suspension strut (11) | Model 203, 209 | AR32.25-P-1017P |
| Model 211, 230 | AR32.25-P-1017TS | ||
| 2 | Disassemble suspension strut (11) and remove shock absorber | Model 203, 209 | AR32.25-P-1018P |
| Model 211, 230 | AR32.25-P-1018TS | ||
| 3 | Install in the reverse order |
