Electronic rear axle level control, networking of components - GF32.33-P-0004-05A

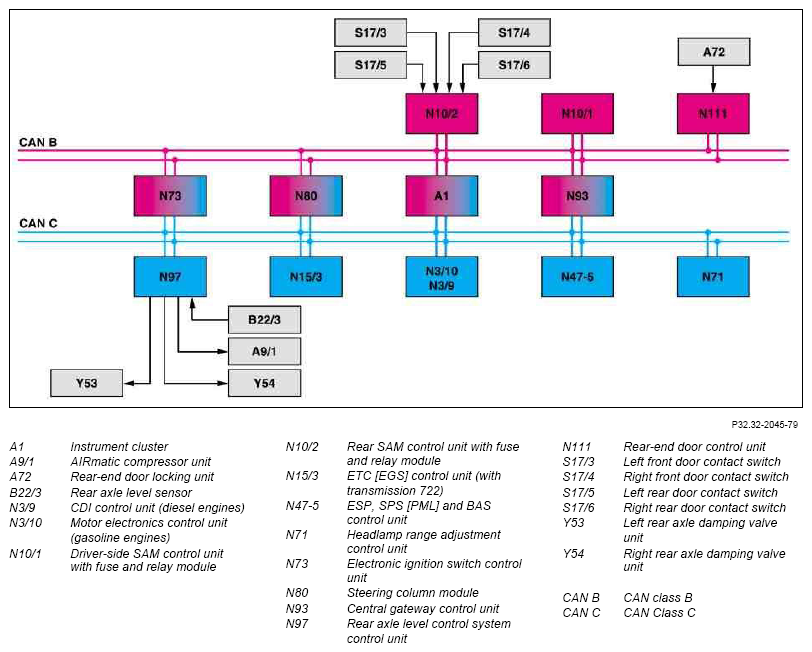

Fig 1: Identifying Electronic Rear Axle Level Control Components Networking

G07274402

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
