AIRmatic, location of pneumatic/hydraulic components - GF32.22-P-0003-02E

MODEL 211

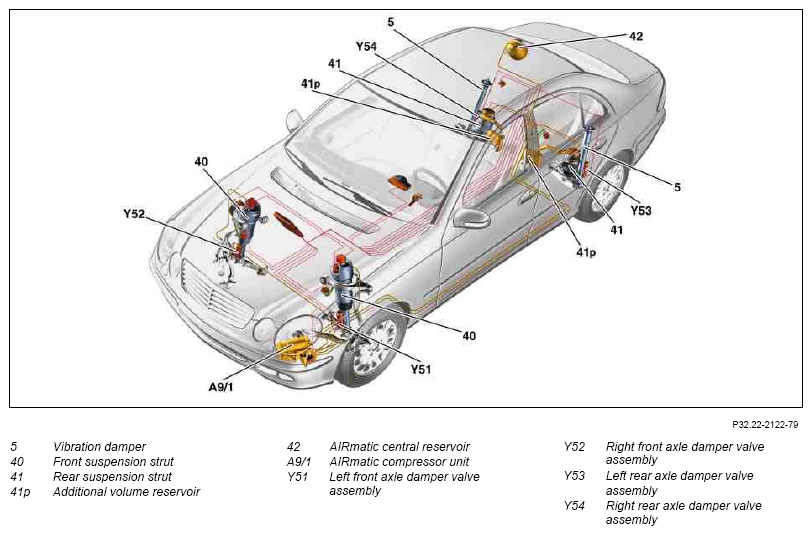

Fig 1: Locating AIRmatic Pneumatic/Hydraulic Components

G07285329

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
