AIRmatic control module with ADS, location - GF32.22-P-4200-01E

Model 211

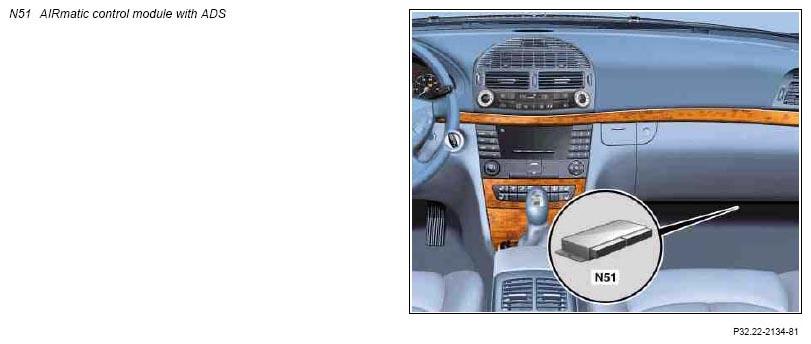

Fig 1: Locating AIRmatic Control Module With ADS

G07285341

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
