AIRmatic - location of the electrical/electronic components - GF32.22-P-0003-03E
AIRmatic - location of the electrical/electronic components - GF32.22-P-0003-03E
Model 211

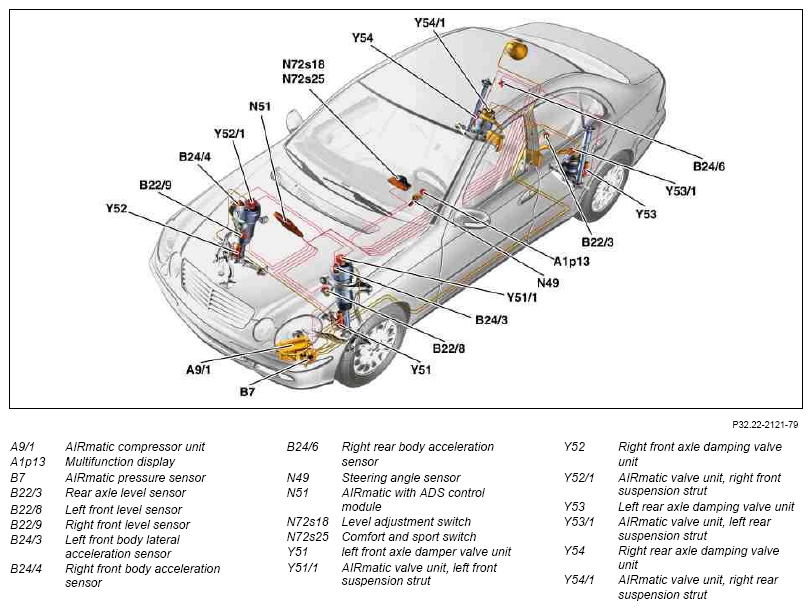

Fig 1: Locating AIRmatic Electrical/Electronic Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
