Steering wheel heater switch, location/task - GF46.11-P-4001T

MODELS 211.0/2/6 with CODE (443) Steering wheel heater

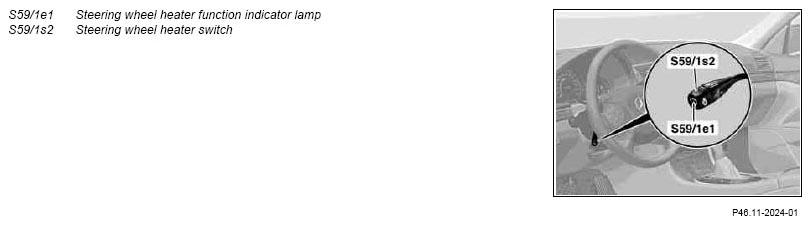

Fig 1: Identifying Steering Wheel Heater Function Indicator Lamp And Switch
G07285563Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Steering wheel heater switch, location The steering wheel heater switch (S59/1s2) is located on the steering column module.
Steering wheel heater switch, task To pass on the request for switching On or Off the steering wheel heater (LRH) to the steering column module and status display of the steering wheel heater (LRH) via the steering wheel heater (S59/1e1) function indicator.
