Steering wheel heater electronics, location/task - GF46.11-P-4003T
MODELS 211.0/2/6 with CODE (443) Steering wheel heater

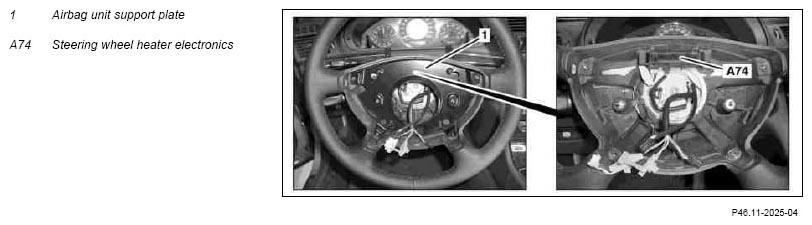

| Steering wheel heater electronics, location | The steering wheel heater electronics (A74) is located in the steering wheel behind the airbag unit support plate (1). |
| Steering wheel heater electronics, task | Heater coil voltage supply, reading in the heater coil temperature sensor and fault detection for heater coil and heater coil temperature sensor. |
