Steering wheel heater (LRH), location of components - GF46.11-P-0001-03TA

15.03.07 The document has been updated to this date and will no longer be subject to revision.

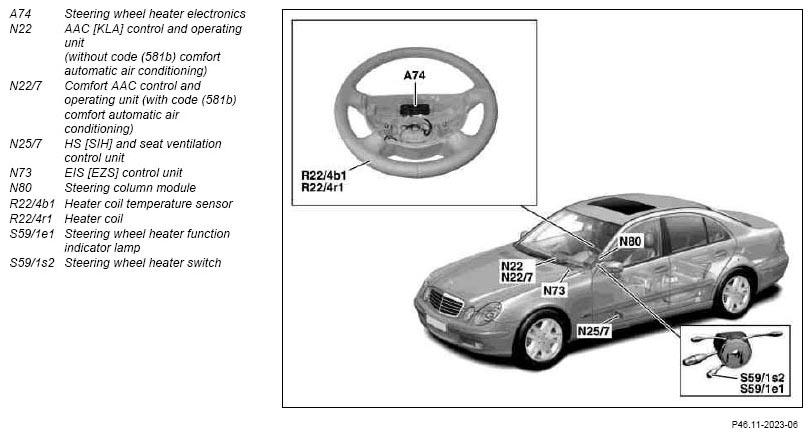

Fig 1: Locating Steering Wheel Heater (LRH) Components
G07285559Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
