Steering wheel heater (LRH), block diagram - GF46.11-P-0001-02TA

15.03.07 The document has been updated to this date and will no longer be subject to revision.

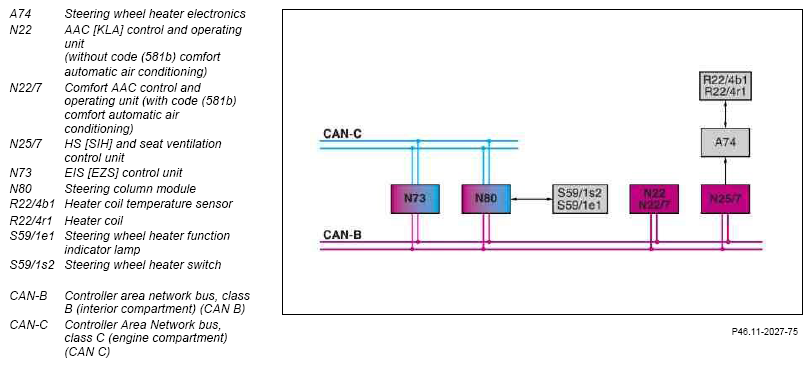

Fig 1: Steering Wheel Heater (LRH) Block Diagram
G07285558Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
