Remove/install passenger airbag unit - AR91.60-P-0680T
MODEL 211.0/2/6
| Remove/Install | |||
| Risk of injury. Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Instructions for performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractors | AH91.00-P-0004-01A | ||
| 1 | Remove top section of instrument panel | AR68.10-P-1020T | |

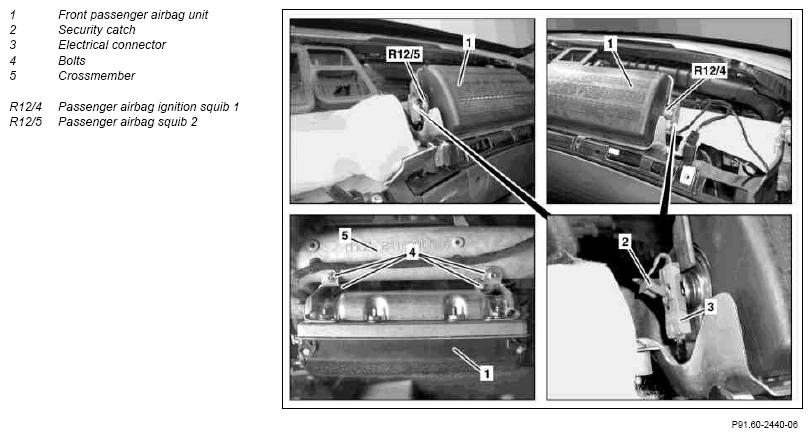

| 2 | Release lock tabs (2) and disconnect electrical connector (3) from front passenger airbag squib 1 (R12/4) and front passenger airbag squib 2 (R12/5) | ||
| Risk of fire and explosion caused by machining/treating magnesium components | Keep away from ignition sources and open flames. | AS60.00-Z-0006-01R | |
| 3 | Remove bolts (4) | ||
| *BA91.60-P-1004-01A | |||
| Information on machining/treating magnesium components | AH60.00-P-0023-01R | ||
| 4 | Remove front passenger airbag unit (1) from crossmember (5) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 5 | Install in the reverse order | ||
| 6 | Check restraint system using STAR DIAGNOSIS | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A |
AIRBAG
| Number | Designation | Model 211.0 | Model 211.2 | Model 211.6 | |
|---|---|---|---|---|---|
| BA91.60-P-1004-01A | Bolt of front passenger airbag unit to instrument panel mounting | Nm | 4 | 4 | 4 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
