Remove/install front seat backrest seat-back lining - AR91.10-P-1910TB

MODEL 211.0/2/6 as of 1.7.04

Driver seat

MODEL 211.0/2/6 as of 1.7.04 except CODE (842) Folding front passenger backrest (usable as table) Front passenger seat

Shown on left front seat

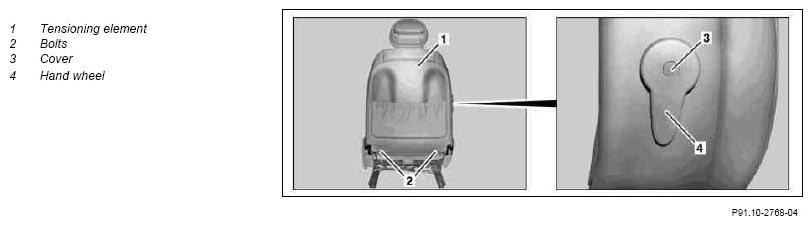

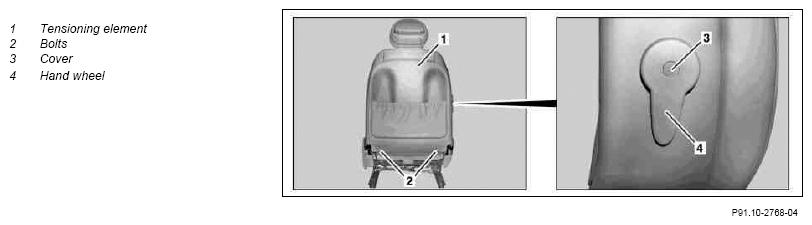

Fig 1: Identifying Front Seat Backrest Seat-Back Lining Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Adjust left or right front seat forward and move backrest into upright position
2.1	Unclip cover (3) using a suitable screwdriver, remove the screw located underneath and remove hand wheel (4) of lumbar support	Only on driver seat without code (404) Left multicontour seat or without code (433) Left dynamic seat, incl. multicontour seat
3	Unscrew bolts (2)
4	Slide seat-back lining (1) at the front seat backrest down and remove from guides	Remove seat-back lining (1) of front seat backrest carefully to prevent damage to guides on seat-back lining (1).
5	Install in the reverse order
