Remove/install front seat backrest seat-back lining - AR91.10-P-1910TA

MODEL 211.0/2/6 up to 30.6.04 with CODE (842) Folding front passenger backrest (usable as table)

Front passenger seat

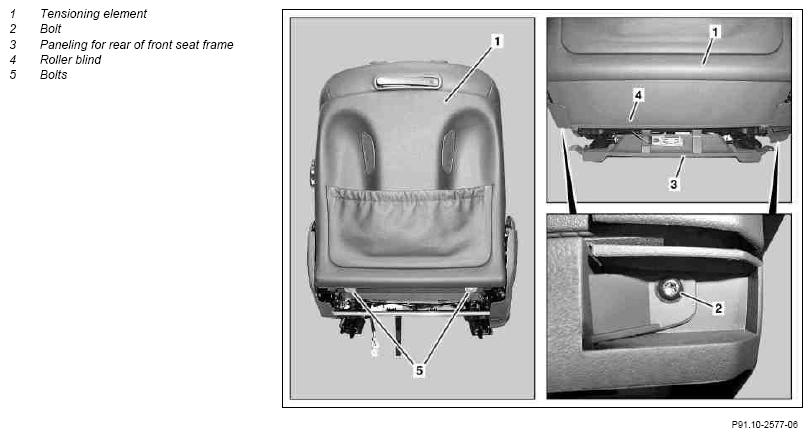

Fig 1: Identifying Front Seat Backrest Seat-Back Lining Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Adjust left or right front seat forward and move backrest into upright position
2	Unclip hand wheel of lumbar support using a mounting wedge		*110589035900
3	Remove bolt (2) on both sides and fold rear paneling of front seat frame (3) downward.	Installation:  Attach the roller blind (4) of the seat-back lining (1) to rear paneling of front seat frame (3).
4	Route roller blind (4) in the upward direction and remove bolts (5)
5	Slide seat-back lining (1) at the front seat backrest down and remove from guides	Remove seat-back lining (1) of front seat backrest carefully to prevent damage to guides on seat-back lining (1).
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
