Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01T

Shown on model 211.0

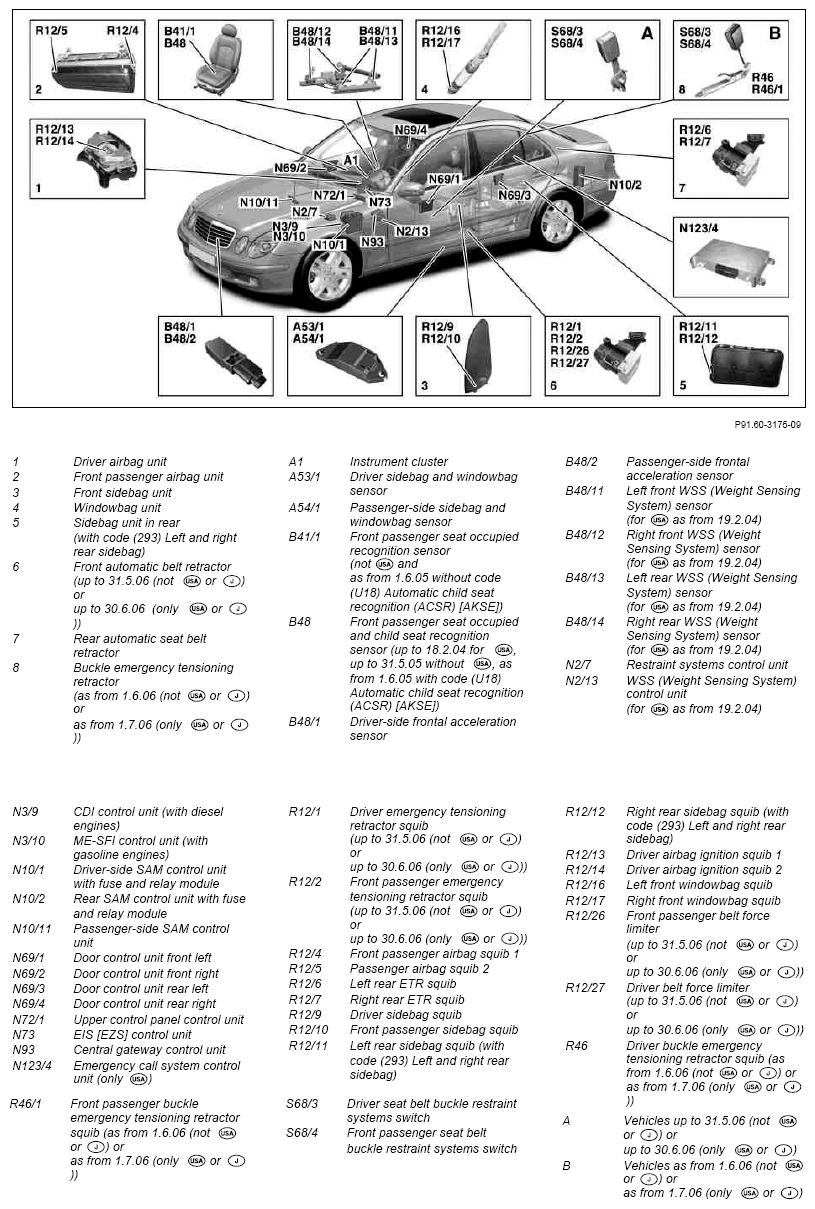

Fig 1: Locating Supplemental Restraint System (SRS) Components
G07286266Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
