Supplemental restraint system (SRS), component networking - GF91.60-P-0002-02T

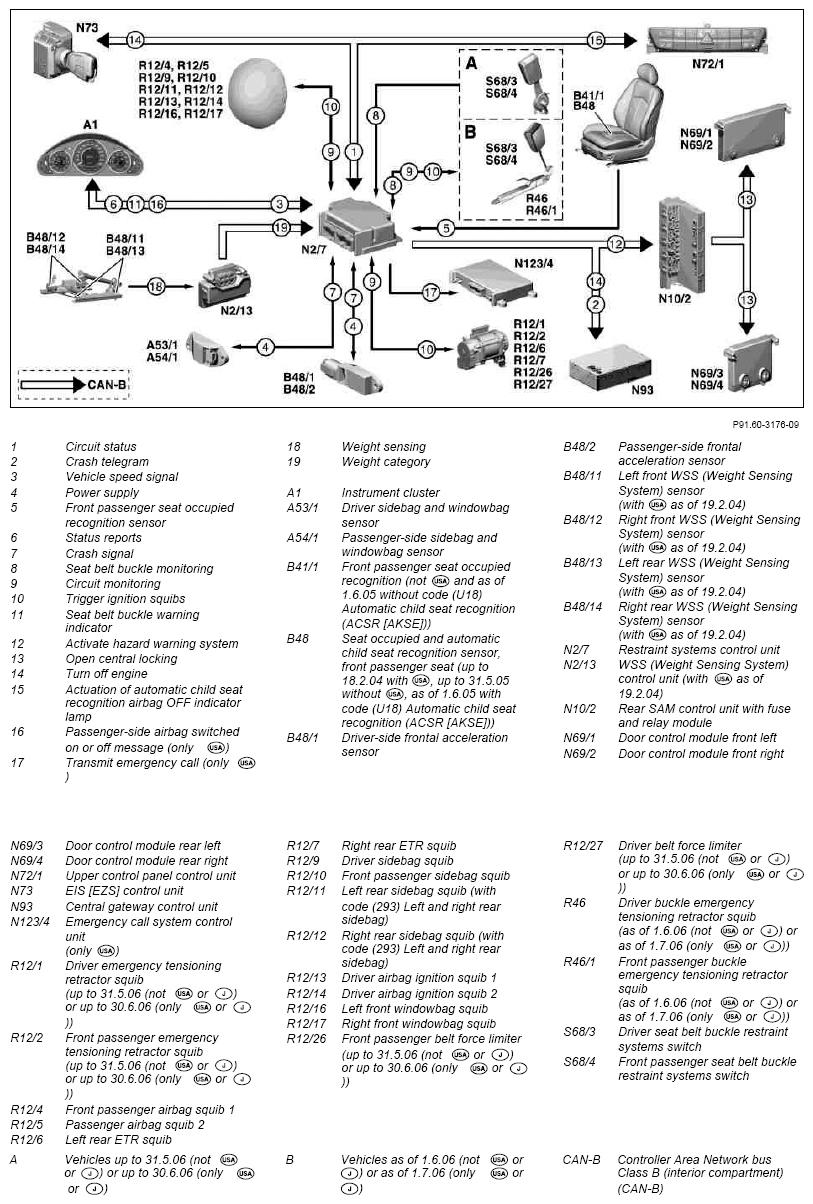

Fig 1: Supplemental Restraint System (SRS) Component Networking

G07286267

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
