Supplemental restraint system (SRS), block diagram - GF91.60-P-0002-03T

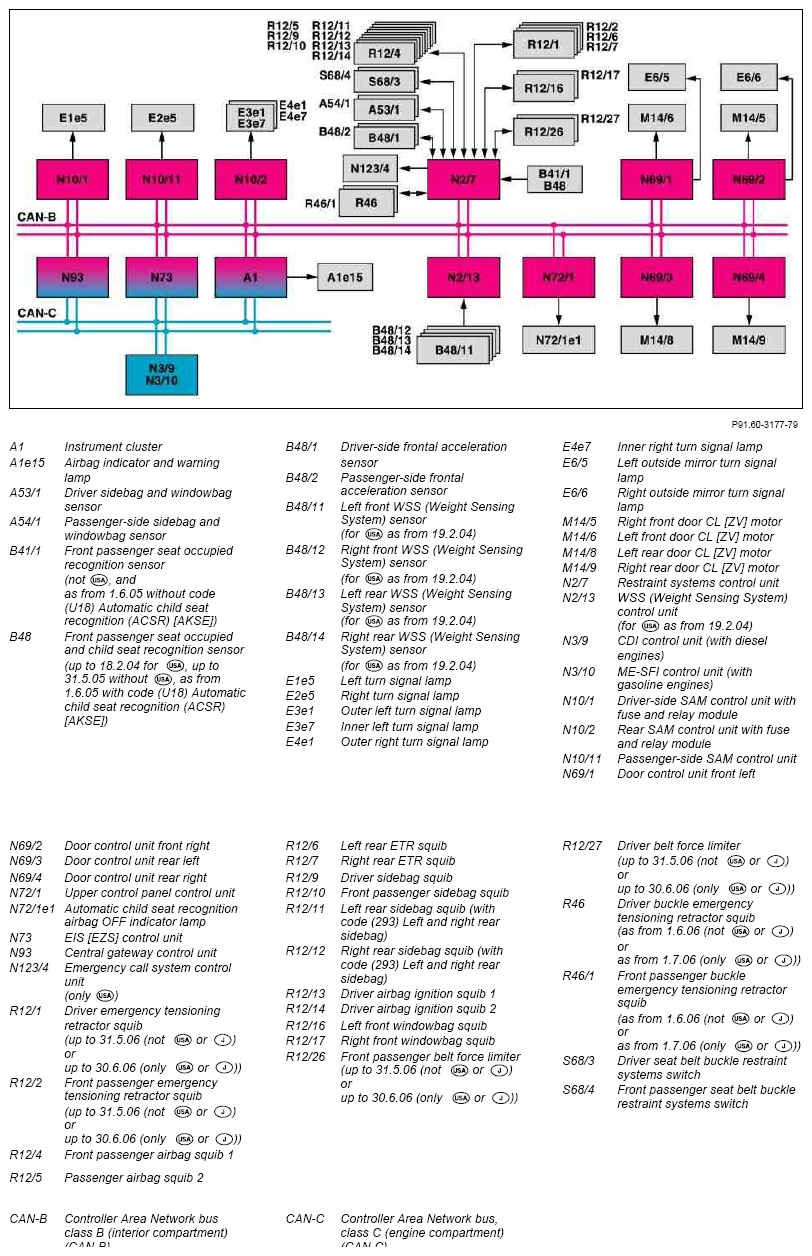

Fig 1: Supplemental Restraint System (SRS) Block Diagram

G07286268

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
