Seat belt buckle switch, component description - GF91.60-P-4045T

MODELS 211.0/2

Location

The seat belt buckle switches are integrated in the seat belt buckle of the driver or in the seat belt buckle of the front passenger.

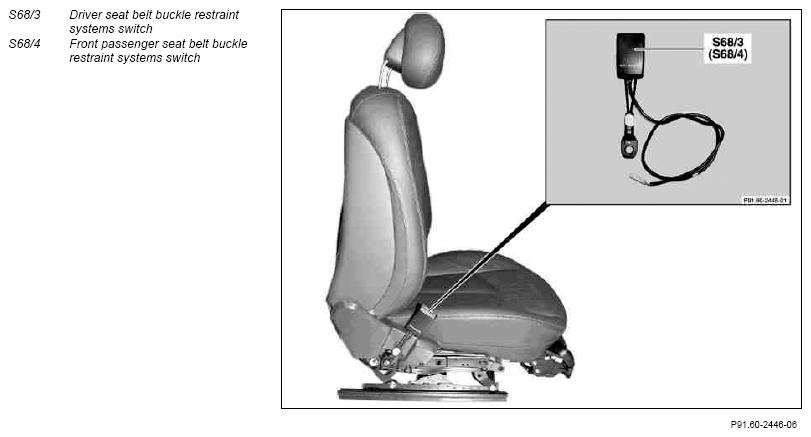

Fig 1: Identifying Seat Belt Buckle Restraint System Switches
G07286281Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The seat belt buckle switches monitor whether the seat belts on the driver seat or front passenger seat are fastened and supply the corresponding signal for the output of the seat belt reminder warning in the instrument cluster (A1).
