Motor group for front seat adjustment with memory, location/body - GF91.29-P-2105T

MODELS 211.0/2/6 with CODE (275a) Memory package (driver's seat, steering column, mirrors) with CODE (242b) Electrically adjustable front passenger seat with memory

Shown on driver seat

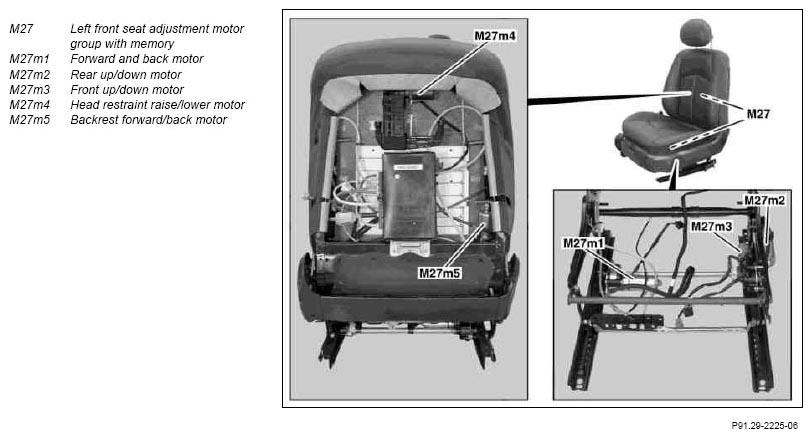

Fig 1: Locating Motor Group For Front Seat Adjustment With Memory
G07285251Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Motor group for front seat adjustment with memory, location The motors of the front seat adjustment motor group with memory, left (M27) or right (M28) are located in the respective seat backrest or in the respective seat frame.
Front seat adjustment motor group with memory, design   GF91.29-P-2105-01T
