Heated seats (SIH) location of components - GF91.30-P-0003-02T

Shown on model 211.0

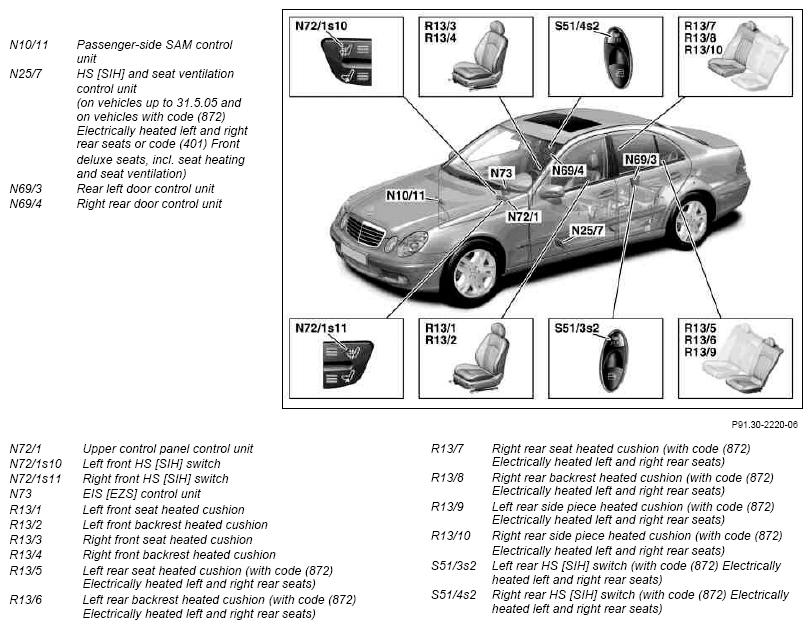

Fig 1: Locating Heated Seats Components

G07286250

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
