Heated seats (HS), networking of components - GF91.30-P-0003-01T

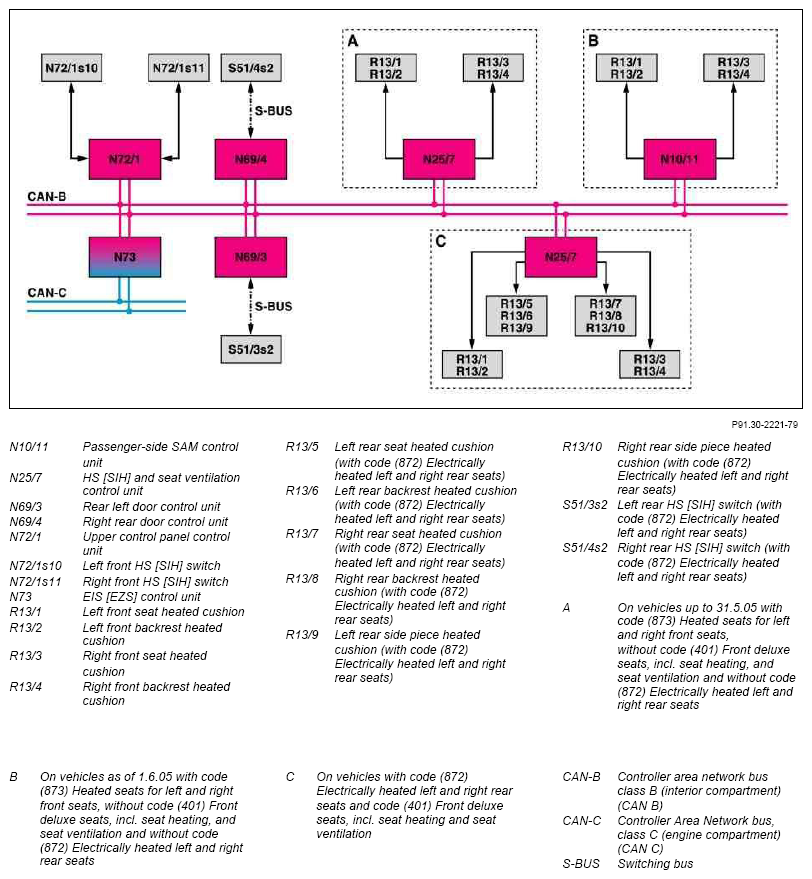

Fig 1: Heated Seats Networking Of Components

G07286249

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
