Electric seat ventilation, networking of components - GF91.30-P-0002-01T

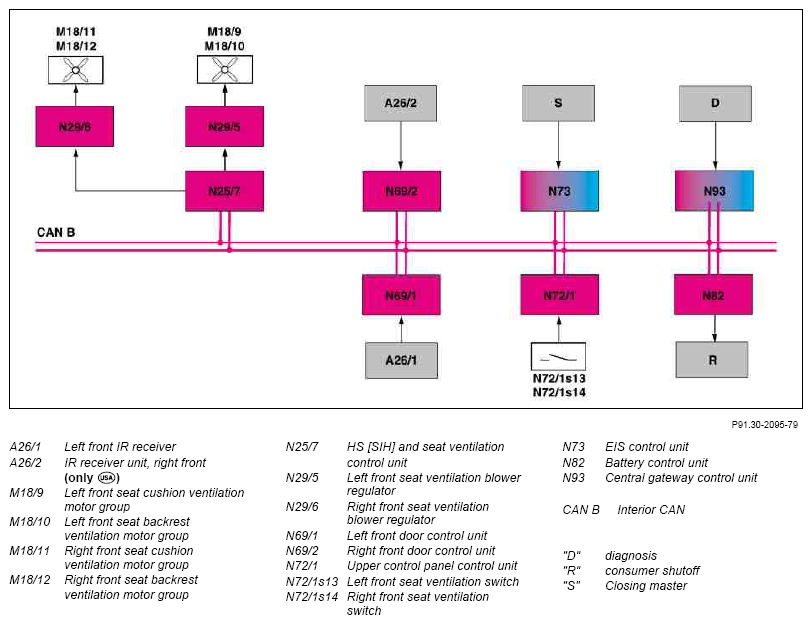

Fig 1: Electric Seat Ventilation Networking Of Components

G07286248

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
