Dynamic seat switch location/task - GF91.25-P-2110T
MODELS 211.0/2/6 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat

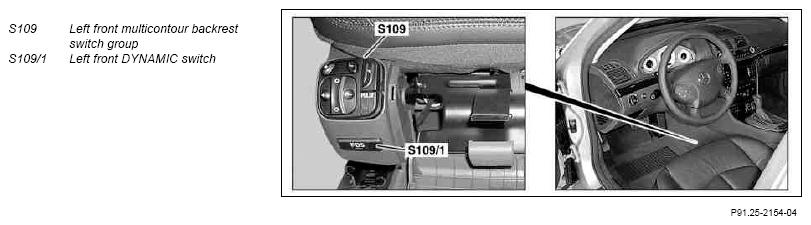

Shown on left front seat
| Dynamic seat switch, location | The left front DYNAMIC switch (S109/1) is located below the front left multicontour backrest switch group (S109) in the front portion of the front seat. |
| Dynamic seat switch, task | The left front DYNAMIC switch (S109/1) is used to transmit the adjustment requests to the left front dynamic seat control unit (N32/19). |
