Dynamic seat control unit location/task - GF91.25-P-2105T

MODELS 211.0/2/6 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat

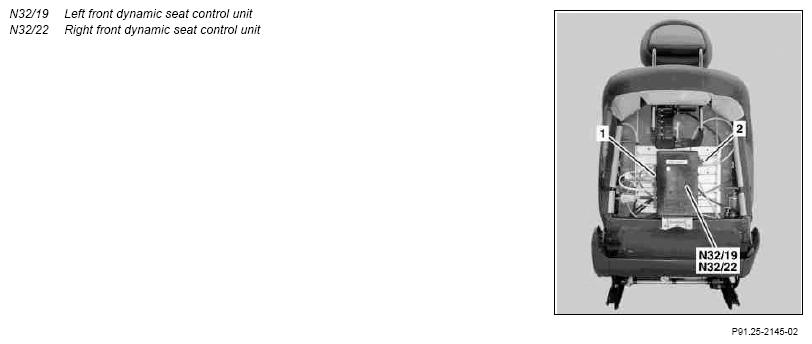

Fig 1: Identifying Left And Right Front Dynamic Seat Control Units
G07286236Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Dynamic seat control unit, location The left front dynamic seat control unit (N32/19) and the right front dynamic seat control unit (N32/22) are installed in the backrest of the particular front seat.
Dynamic seat control unit, task   GF91.25-P-2105-01T
