Stationary heater (STH) block diagram - GF83.70-P-0006-04T

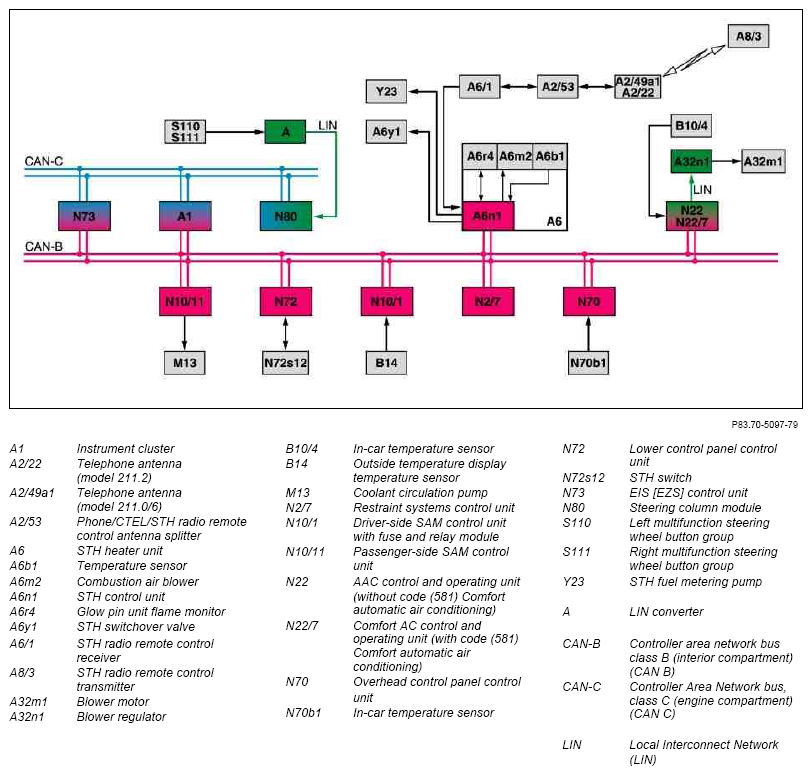

Fig 1: Stationary Heater Block Diagram

G07286097

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
