Refrigerant pressure and temperature sensor location/task/function - GF83.40-P-2171T
MODELS 211.0/2/6 up to 31.5.05
Shown on model 211.0

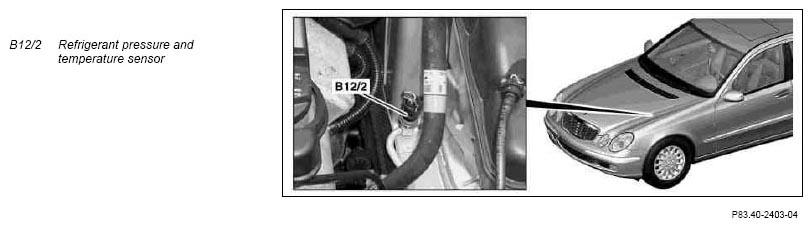

| Refrigerant pressure and temperature sensor, position | The pressure and refrigerant temperature sensor (B12/2) is located next to the coolant expansion reservoir at the left of the engine compartment. | |
| Refrigerant pressure and temperature sensor, task | The refrigerant pressure and temperature sensor (B12/2) senses the refrigerant pressure and the temperature of the refrigerant. | |
| Refrigerant pressure and temperature sensor, function | GF83.40-P-2171-01T |
