Refrigerant compressor control valve location/task/function - GF83.55-P-2102T
MODELS 211.0/2/6

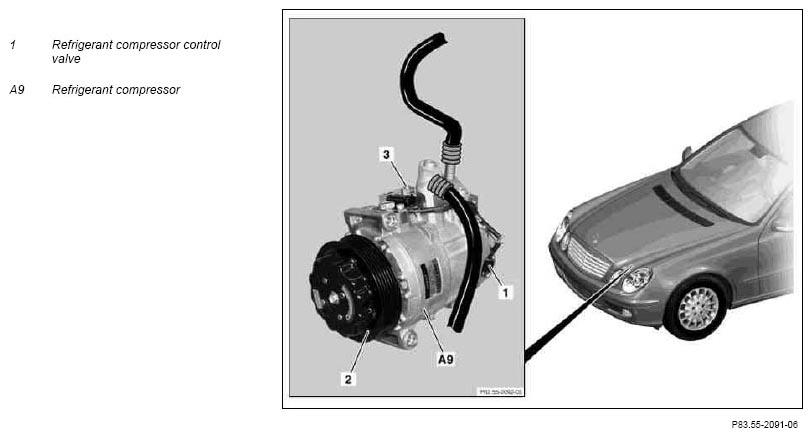

Shown on model 211.2
| Refrigerant compressor control valve, position | The refrigerant compressor control valve (1) is located on the refrigerant compressor (A9). | |
| Refrigerant compressor control valve, task | The refrigerant compressor control valve (1) regulates the swept volume of the refrigerant compressor (A9) dependent upon the refrigerant capacity requirement. | |
| Refrigerant compressor control valve, function | GF83.55-P-2102-02P |
