Heating water circulation pump, location/task/function - GF83.20-P-2109T
MODELS 211.0/2/6
Shown on model 211.0

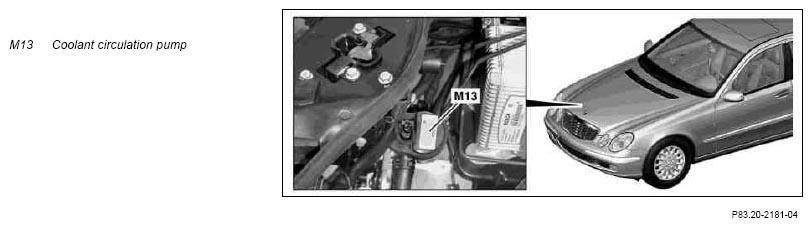

| Coolant circulation pump, position | The coolant circulation pump (M13) is located at the right front in the engine compartment. | |
| Heating water circulation pump task | Maintenance of a constant flow of hot water through the heat exchanger, even at low engine speeds. Recirculation of coolant during residual engine heat or stationary heater mode (if fitted). |
|
| Heating water circulation pump, function | GF83.20-P-2102-01T |
