Fluid reservoir, location/task/function - GF83.40-P-2153T

MODELS 211.0/2/6

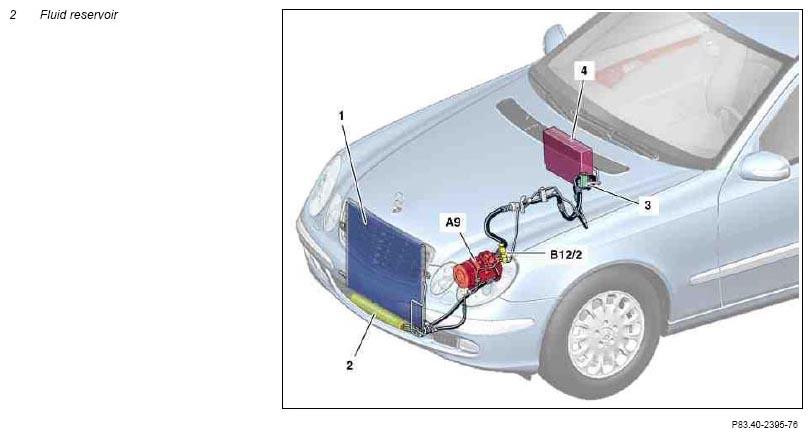

Fig 1: Locating Fluid Reservoir

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Receiver position	The fluid reservoir (2) is located on the condenser, front, in the engine compartment.
Fluid reservoir, task	The tasks of the fluid reservoir (2) are as follows: Filtering chemical and mechanical contaminants out of the refrigerant, Volume reservoir for refrigerant, Draining of refrigerant.
Receiver function		GF83.40-P-2122-01P
