Condenser, location/task/function - GF83.40-P-2152T

MODELS 211.0/2/6

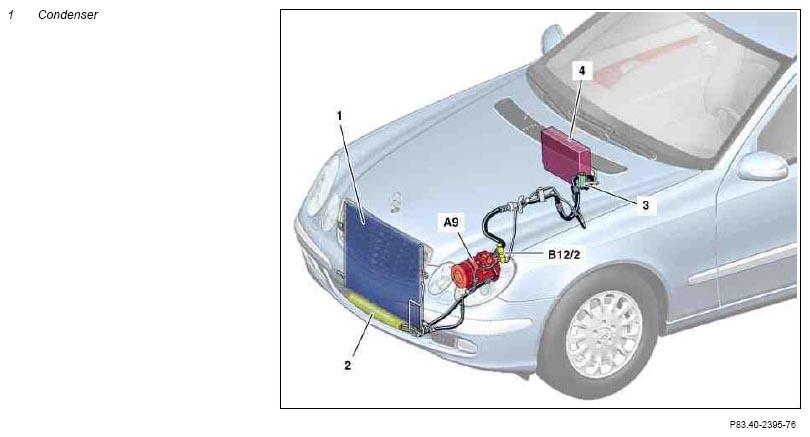

Fig 1: Locating Condenser
G07286073Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Condenser position The condenser (1) is located behind the radiator grille directly in front of the radiator.
Condenser task The condenser (1) ensures that the refrigerant coming from the evaporator changes state from gas to liquid.
Condenser function   GF83.40-P-2120-01P
