Comfort automatic air conditioning (C-AAC) [K-KLA], location of components - GF83.40-P-0004-03T

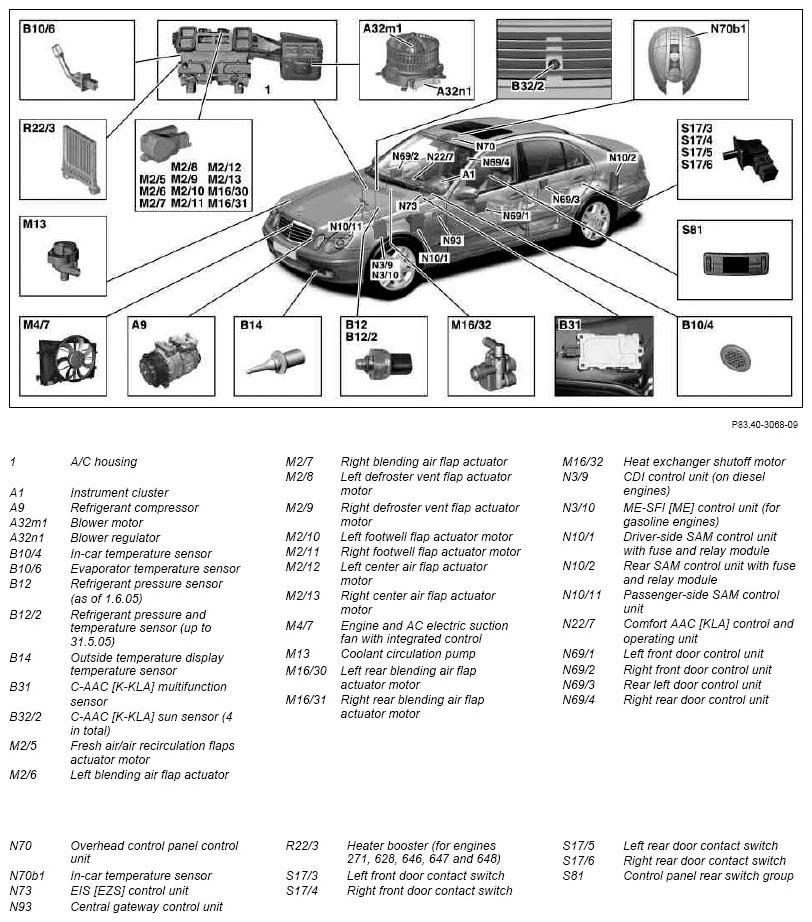

Fig 1: Locating Comfort Automatic Air Conditioning Components
G07286065Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0
