Blower regulator, location/task/function - GF83.10-P-2141T

MODELS 211.0/2/6

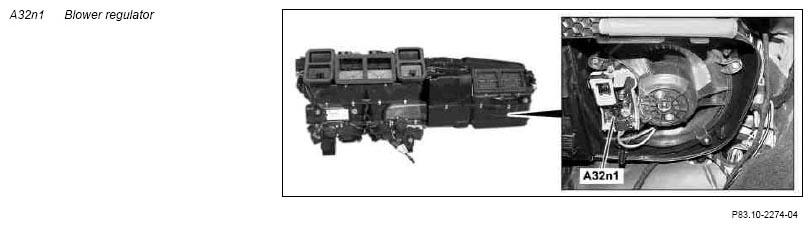

Fig 1: Locating Blower Regulator
G07286057Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Blower regulator, location The blower regulator (A32n1) is located under the blower motor on the right of the AC housing.
Blower regulator, task The blower regulator (A32n1) regulates the output of the blower motor (A32m1) and as a result the flow volume of the air drawn in or recirculated.
Blower regulator function   GF83.10-P-2103-01T
