Belt pulley, location/task/design/function - GF83.55-P-2103T

MODELS 211.0/2/6

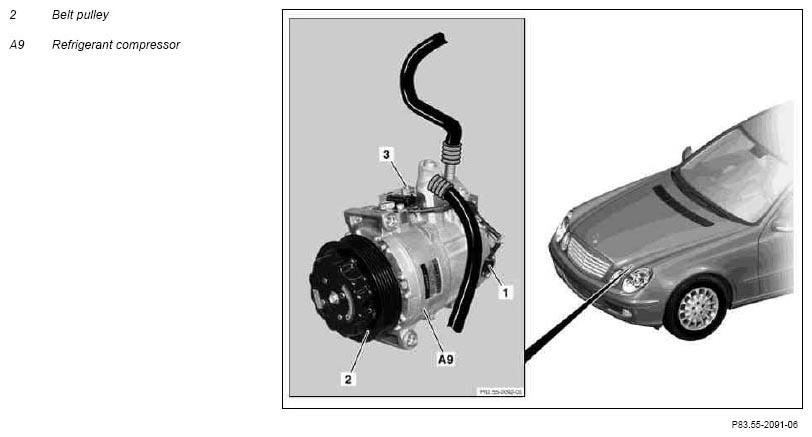

Fig 1: Identifying Refrigerant Compressor And Belt Pulley
G07286092Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Belt pulley, position The belt pulley (2) is located at the front of the drive shaft on the refrigerant compressor (A9).
Belt pulley, purpose The belt pulley (2) drives the refrigerant compressor (A9). In addition the pulley (2) is also used as a torque damper and a torque limiter.
Belt pulley, design   GF83.55-P-2103-03P
Belt pulley, function   GF83.55-P-2103-02P
