Remove female contact from miniature double flat spring contact coupling - AR00.19-P-0120-29A

Secondary release on version with locking grille (1)

1. Insert a suitable tool on side between locking grille (1) and housing.
2. Slide locking grille (1) in direction of arrow.

Shown on a 9-pin MDK, DFK coupling

Secondary unlocking for version with slide (1)

1. Insert a suitable tool on side between slide (1) and housing.
2. Move slide (1) in direction of arrow.

Shown on a 5-pin MDK, DFK coupling

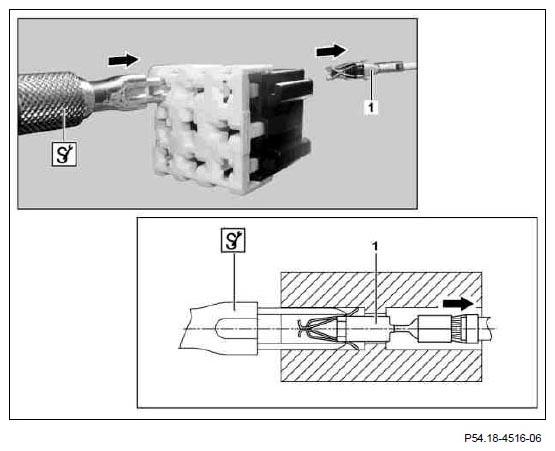

Unpin female contacts from coupling (MDK)

1. Insert blade holder with clamping pliers and LSK 8 blade from front end through the openings in coupling contact cavity.

   This pushes together the springs at the female contact (1).

2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

Shown on a 9-pin MDK, DFK coupling
