Remove contacts from E 95 coupling - AR00.19-P-0120-05A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying E 95 Blade (220 589 01 99 55)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unfasten secondary release on version with "E 95 coupling" tab

1. Using a suitable tool, push tab in direction of arrow out of locked position.
   Fig 5: Pushing Tab Out Of Locked Position

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unfasten secondary release on version with "E 95 coupling" slide

2. Using a suitable tool, move slide in direction of arrow into pre-locking position (1).
   Fig 6: Moving Slide Into Pre-Locking Position

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unfasten secondary release on version with "E 95 coupling" securing clip

3. Push retainer (1) in direction of arrow out of locked position using a suitable tool.

   The seal may be damaged if the tool is inserted too.

   Fig 7: Pushing Retainer Out Of Locked Position

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unfasten secondary release on version with "E 95 coupling" contact retainer

4. Press on tabs of contact retainer between the contact cavities (3, 5 or 4, 6) with suitable tool.
5. Open contact retainer.

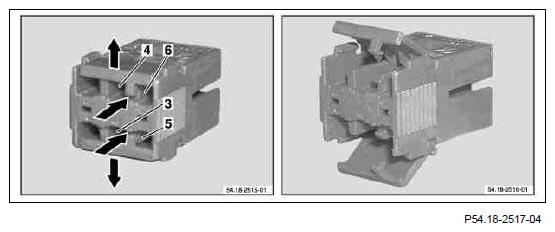

   Fig 8: Locating Tabs Of Contact Retainer Between Contact Cavities

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unpin female contacts from "E 95 coupling"

6. Insert blade holder with clamping pliers and E 95 blade from front side though openings at contact cavity of coupling (2).

   Insert tool carefully to prevent damaging webs between contact cavity and openings for release tool.

   This pushes together the springs at the female contact (1).

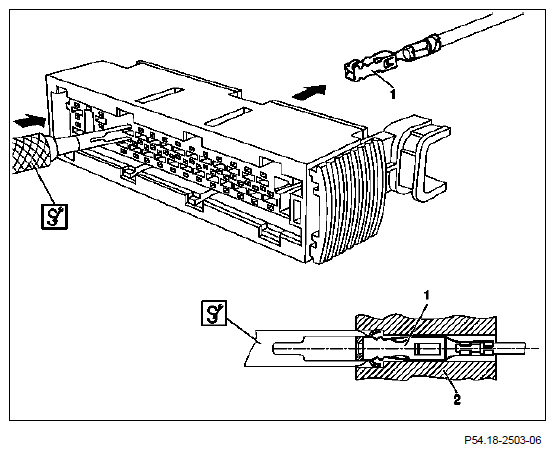

   Fig 9: Removing Female Contact From Coupling

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. A slight tug on the corresponding cable will remove the female contact (1) from the coupling (2).
