Active service system (ASSYST PLUS), operating instructions - GF00.20-P-0004-01TA
Service indicator on driver request in ASSYST PLUS system
The displays shown are executed equally on various national versions. Only the translation in the set language changes.
Procedure
Entry is possible to the first level in the multifunction display (A1p13) basic menu with "Circuit 15 ON". The temperature display and trip odometer should appear.
If a different display appears initially, it is necessary to select this display with the system selection button (S110s3) on the multifunction steering wheel (MFL).
Service indicator
Press scroll forward/back buttons on multifunction steering wheel (MFL) (S110s1) until service indicator (wrench) for ASSYST PLUS with scope of service and remaining distance (e.g. Service D) appears on the multifunction display (A1p13).
Call service menu
To call the "SERVICE MENU" it is necessary to press the instrument illumination rheostat and reset button (A1r1) for 5 5 s.
Navigation service menu

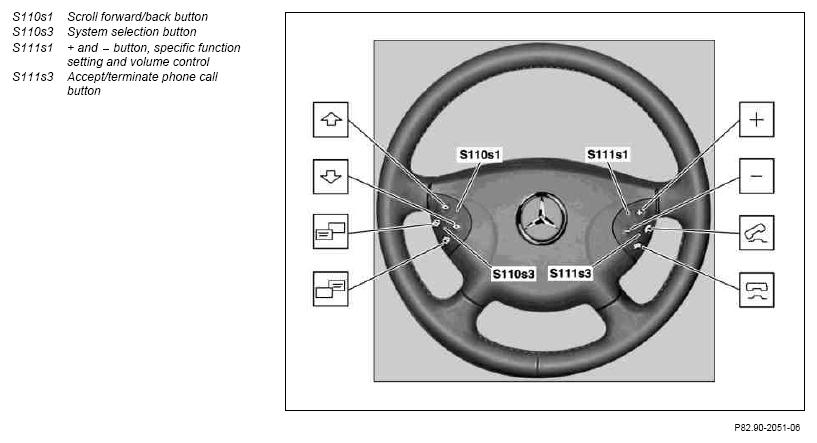

The display "SERVICE MENU" appears. With the + and - button, specific functions setting and volume control (S111s1) it is possible to navigate in the service menu and to select the desired items.
The item can then be confirmed with the bottom system selection button (S110s3). The item can be exited with the top system selection button (S110s3).
The selection of possible button actuations is indicated in the small display at the bottom.
Call service data
To call the "SERVICE DATA", select this menu point with the + and -button, specific functions setting and volume control (S111s1). Then confirm with the bottom system selection button (S110s3).
Here, the workshop code is displayed. This serves as preliminary information for the workshop (optimum time in workshop).
All menu items and their submenus in the SERVICE MENU, such as "SERVICE DATA", can be operated with the + and - button, specific functions setting and volume control (S111s1) and the bottom system selection button (S110s3) for confirmation. The selection of possible button actuations is indicated in the small display at the bottom.
Reset ASSYST PLUS after service
Reset ASSYST PLUS only after service!
Sequence:
- Insert transmitter key (A8/1) in EZS control unit (N73) and turn to position "Circuit 15 ON".
2nd Call "SERVICE MENU".
Select menu point "CONFIRMATION" with the + and button, specific functions setting and volume control (S111s1).
3rd Select menu point "CONFIRM" with bottom system selection button (S110s3).
4th Mark selection point "STANDARD OIL" by pressing the + and -button, specific functions setting and volume control (S111s1) and select and confirm the menu point "SERVICE CONFIRMED" by pressing the bottom system selection button (S110s3) again.
5th The service displayed has been reset.
- 6. Press the top system selection button (S110s3) repeatedly until the basic menu appears. ASSYST PLUS then calculates the next new service date.
Confirmation
Select menu point "CONFIRMATION" with the + and button, specific functions setting and volume control (S111s1).
Select menu point "CONFIRM" with bottom system selection button (S110s3).
